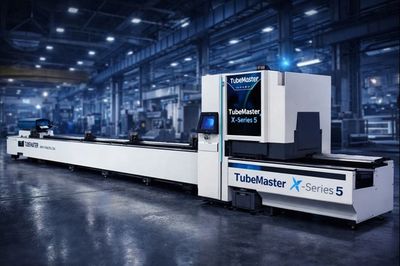

TubeMaster X-Series 5
CNC Machining
The TubeMaster X-Series 5 is a high-precision CNC pipe cutting machine designed for efficient and accurate cutting of round, square, and rectangular tubes.
It is suitable for both small-batch production and continuous industrial operation.
Key Features
CNC-controlled cutting process
High cutting accuracy and repeatability
Compatible with steel, stainless steel, and aluminum tubes
Optimized for industrial productivity and low material waste
Technical Parameters
Laser Power: 3 kW – 6 kW
Tube Processing Range (Round Tube): Ø50 – Ø230 mm
Tube Processing Range (Square Tube): 50×50 – 230×230 mm
Positioning Accuracy: ± 0.05 mm
Repeat Positioning Accuracy: ± 0.03 mm
Maximum Speed: 75 m/min
Maximum Chuck Rotation Speed: 100 rpm
Maximum Table Load: 260 kg
